ED Editor¶

The ED Editor is a proprietary editor available from SpiffWorks. It supports real-time editing, authoring, and running of BPMN diagrams directly in the browser.

Launch the editor: https://ed.spiff.works

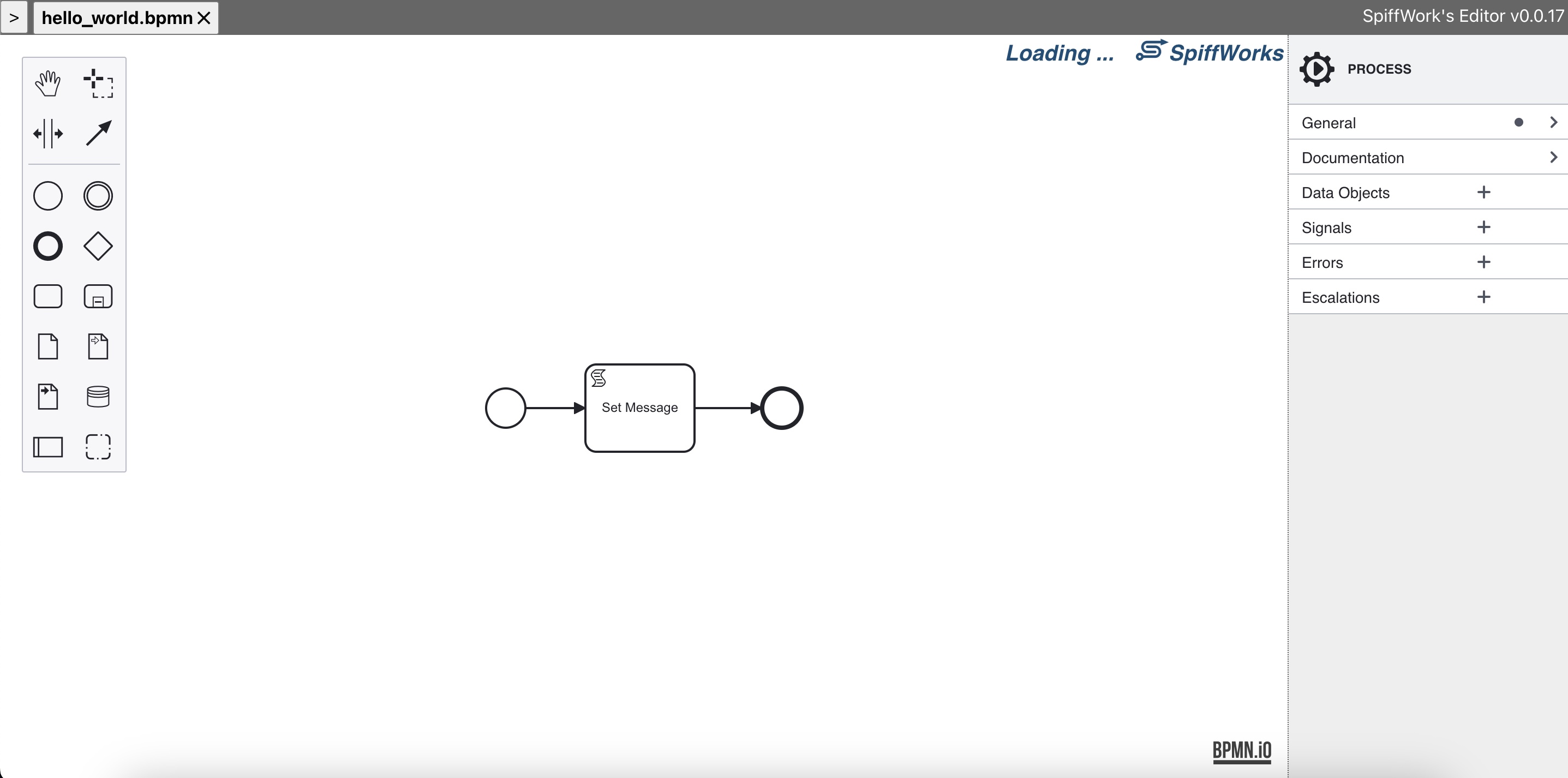

Ed Editor Interface

What You Can Do in the ED Editor¶

Author BPMN diagrams in real-time
Run BPMN diagrams to validate flow behavior while you build
Sync process models to GitHub (optional) using a dedicated configuration BPMN file

Getting Started¶

Open https://ed.spiff.works
Create or open a workspace
Create or open a BPMN diagram
Edit and run the diagram as needed

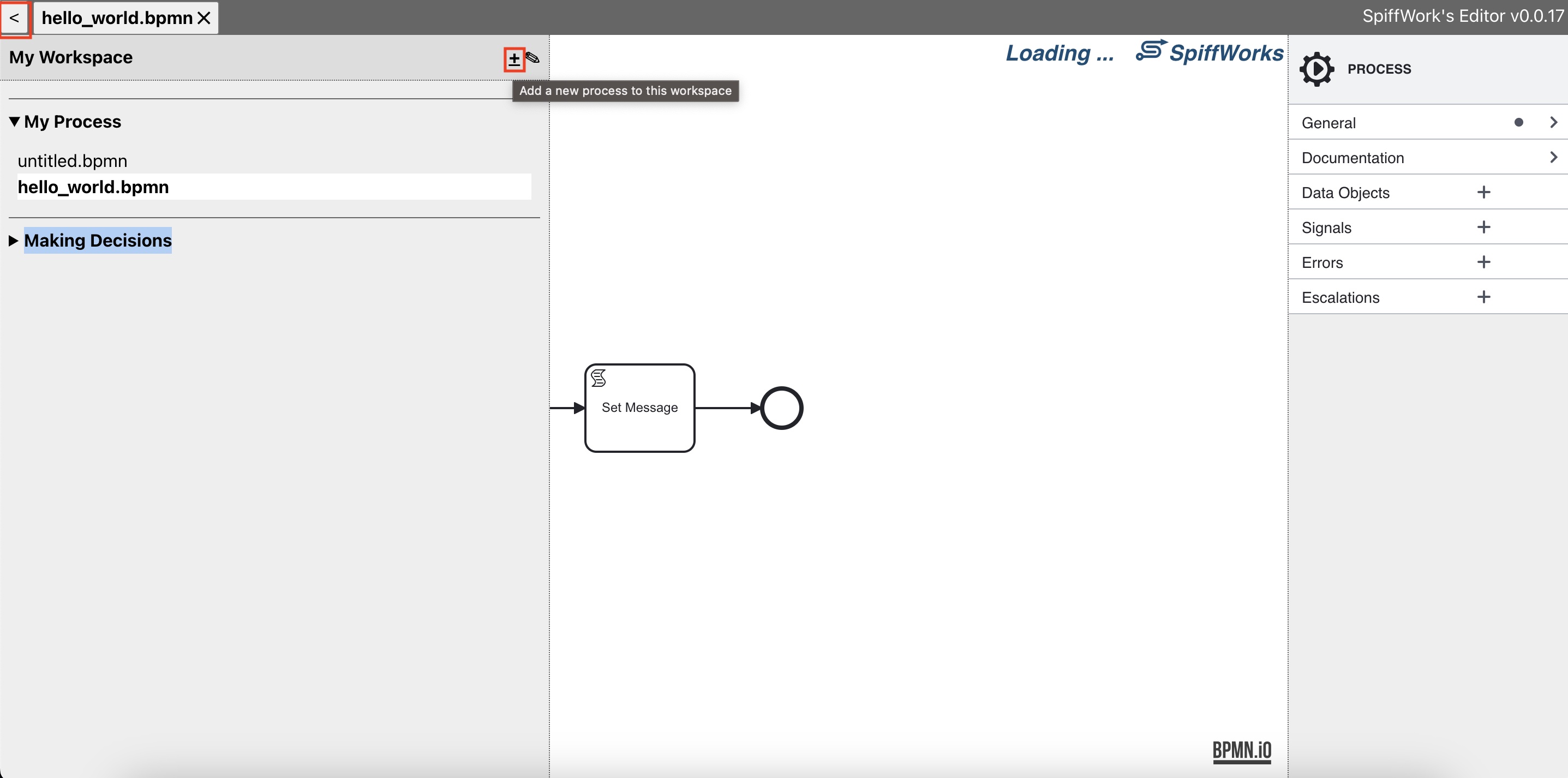

Create Workspace

Syncing with GitHub¶

To enable syncing with GitHub, the ED Editor requires a special BPMN configuration file. This file tells the editor:

which GitHub repositories it is allowed to connect to
which branch (ref) to sync against
which connector proxy to use for service calls

You can create this file by hand or use an included example.

Required Configuration File: `ed:config.bpmn`¶

Create a BPMN diagram that contains:

a Start element
a Script Task
an End element

Name the file exactly:

ed:config.bpmn

Recommended placement:

create a workspace called Configuration
store ed:config.bpmn inside that workspace

Why a dedicated workspace?
Keeping configuration separated from process models:

reduces accidental edits to configuration files

makes setup easier to locate

helps prevent ed:config.bpmn from being synced to GitHub along with process models

Script Task Variables¶

Inside the Script Task in ed:config.bpmn, define two variables:

github_token
config

These values are used by the ED Editor to authenticate with GitHub and determine which repositories and branches are available for syncing.

1) `github_token`¶

A GitHub Personal Access Token (PAT) used to access the repositories you want to sync.

How to generate a token¶

Go to GitHub Settings
Open Developer settings
Generate a Personal access token

2) `config`¶

A dictionary describing which repositories can be connected so the editor knows what to display in selection dropdowns.

At minimum, it contains:

connectorProxyUrl
sync.github.repos[] (one or more repo definitions)

Example Configuration (Single Repository)¶

github_token="...."
config = {
  "connectorProxyUrl": "...",
  "connectorProxyApiKey": "...",  # optional - omit if your proxy does not require a key
  "sync": {
    "github": {
      "repos": [
        {
          "owner": "your_name_or_company",
          "repo": "your_process_model_repo",
          "ref": "main",
          "token": github_token
        }
      ]
    }
  }
}

Field meanings¶

connectorProxyUrl The connector proxy base URL used for service calls.
connectorProxyApiKey (optional) If your connector proxy requires an API key, set it here. The editor will include it as a Spiff-Connector-Proxy-Api-Key header on requests to the proxy. See Configure a Connector Proxy for details.
owner The GitHub user or organization that owns the repository.
repo
The GitHub repository name that contains your BPMN/process models.
ref
The branch name to sync against (for example, main).
token
The GitHub token used to access the repo (typically github_token).

Example Configuration (Multiple Repositories)¶

If you want the editor to support multiple process model repositories, add multiple entries under repos:

github_token = "..."

config = {
  "sync": {
    "github": {
      "repos": [
        {
          "owner": "your_org",
          "repo": "process_models_a",
          "ref": "main",
          "token": github_token
        },
        {
          "owner": "your_org",
          "repo": "process_models_b",
          "ref": "main",
          "token": github_token
        }
      ]
    }
  }
}
